PUNCH DOWN MODULAR PLUGS FOR ETHERNET CONNECTIONS

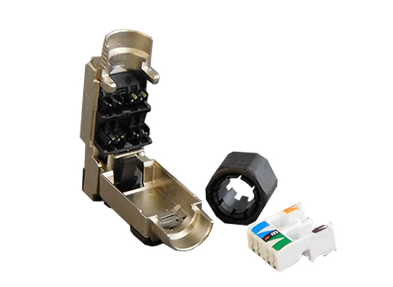

The RJ45 punch down plugs from Stewart Connector, a Bel Group company, provide a time-saving solution for Ethernet connections requiring field assembly.

The RJ45 punch down plugs are available in Cat6 and Cat6A versions for 1G and 10G Base-T networks. The modular punch down plugs can be easily connected without tools. The plugs can be used in a wide variety of applications, such as data and telecommunications, and can also be used in harsh environments.

The experienced Heilind product managers are always available to answer your questions about the numerous application possibilities of the modular Cat6 and Cat6A RJ45 punch down plugs.

Features:

  • Material: 50 micro-inch gold plating (contacts), zinc (housing)
  • Easy-to-use, color-coded conductor pre-load wire manager
  • For 23-26 AWG cables with a diameter over insulation of up to 1.6 mm (0.063")
  • Tolerances a total cable diameter from 6 mm (0.236") to 8 mm (0.315")
  • Contact designed for use on solid or stranded conductor cables
  • Cat6 for use in 1G Base-T networks
  • Cat6A for use in 10G Base-T networks
  • Locking protection
  • Increased service life thanks to gold-plated contacts

Applications:

  • Suitable for data, telecommunications, wireless and PoE applications
  • Ideal for industrial equipment connections
  • Suitable for Power Over Ethernet applications
  • Suitable for shielded and unshielded applications
  • Suitable for use in harsh environments
