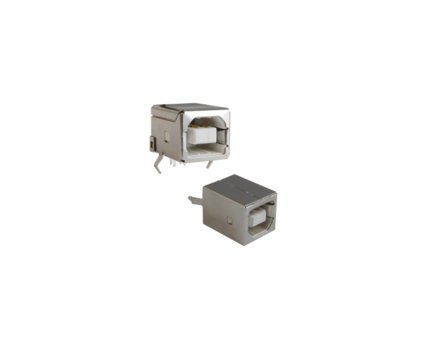

SMALL AND RUGGED USB 2.0 TYPE-B CONNECTORS

Stewart Connector, a Bel Group company, has developed this USB 2.0 Type B connector to provide the industry with an efficient, space-saving and reliable solution with fast data transfer rates.

The compact I/O connectors have a small form factor, a very rugged and highly reliable design, and meet Universal Serial Bus standards.

Heilind Electronics is responding to the growing demand for small and robust I/O connectors and now stocks the new USB 2.0 Type B connector from Stewart Connector.

Features:

  • Material: High-temperature LCP plastic, 30 u" gold (contacts)
  • Data transfer rate up to 480Mbps
  • Frog leg shield pin design increases reliability during soldering process and product lifecycle
  • Peak current value of 1.5 A per contact
  • Wide operating temperature range (-55°C to 85°C)
  • Available in horizontal and vertical arrangement
  • Shielded configurations
  • Through hole soldering
  • Suitable for IR reflow and wave soldering

Applications:

  • Suitable for IoT devices, printers, scanners and compact power devices as well as external storage devices
  • Ideal for industrial applications where space and faster data rates are a priority
