Modular and extremely robust connectors with high density

With the L-Series, Smiths Interconnect has developed high-density, modular rack and panel connectors with coaxial and high current contacts up to 200A. The system consists of modules and frames that can be individually configured.

Frame designs range from a base frame with two side rails and two end caps to more complex versions with jackscrew, end housings, cable clamps, etc. This allows the modules to be flexibly combined according to specific customer requirements.

The Hypertac® contact used is characterized by low insertion and withdrawal forces. This means that a large number of contacts can be mounted in one connector, which can still be connected and disconnected smoothly.

Features:

  • Material: plastic, metal
  • Up to 100,000 mating cycles
  • Power up to 200 A

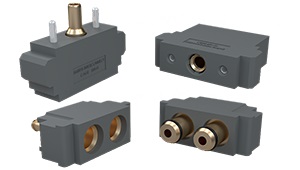

  • Mixed Signal, Power and Coaxial Modules
  • Insensitive to shock and vibration
  • Plastic housing with strain relief and half turn quick disconnect jackscrew
  • Float mountable for dummy plug
  • Mixed signal, power, coaxial, fiber optic and pneumatic modules
  • Configurations according to EN45545 standards
  • Several locking devices and a hood are available.

Applications:

  • Ideal for rugged rack & panel applications in rail and industrial markets
  • Versions with fiber optic modules ideal for Space, Aerospace, Defense, and Industrial applications
  • Versions with pneumatic modules ideal for tooling and agricultural machinery, testing systems, robots, factory machinery
  • Suitable for demanding applications that require special robustness, durability and a long service life
  • Flexible and customized configuration thanks to different modules and frames.
