Medical connectors with innovative Edge Card Technology

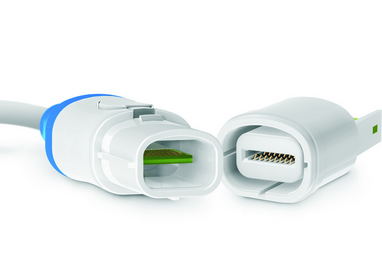

With the Eclipta™ ECL Series, Smiths Interconnect offers a reliable connector system with minimal costs for medical devices. The Eclipta™ Edge Card contact module is located in a reusable housing and is designed for long life.

The Edge Card module can be easily and quickly replaced. This uncomplicated plug-in system saves time and money and prevents possible contact damage when connecting. The medical connector has an innovative, double-sided Edge Card contact system with PCB connection on the side of the disposable connector.

With the products of the Eclipta™ ECL series Heilind supports you with projects in the fast-moving medical environment and is at your side with expert advice.

Features:

  • Material: Plastic
  • Patented Eclipta™ Card Technology
  • PCB connection protects against direct contact by patients and medical staff and thus prevents damage to the pins
  • Modules available with 34, 14, 58 and 82 contacts
  • Double-ended Edge Card contact design
  • Up to 2,500 mating cycles
  • Scalable and flexibly adaptable
  • Pushbutton lock prevents accidental disconnection and emits an audible signal

Applications:

  • Developed for diagnostic and therapeutic medical systems such as mapping or ablation catheters, RF generators, home healthcare equipment and many other high quality systems and disposable medical products.
  • Depending on the individual application, various modules can be combined linearly or in parallel with a single connector.
  • Connector can be connected either to the disposable device or directly to the system.
  • Meets standard medical sterilization protocols such as Autoclave, EtO and Sterrad®.
