The next generation of power connectors for the railway industry

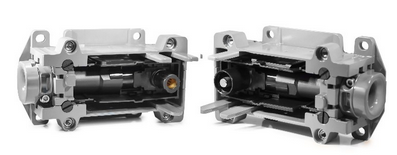

With the new generation of the modular Transformer Heavy Power series, Smiths Interconnect offers innovative and even more powerful connectors for on-board rail applications.

The products of the Transformer Heavy Power Series are modular in design. With the individual parts of the connector, manufacturers in the railway industry can design their individual connection solution. This flexible design reduces supply chain, cabling and maintenance costs.

The innovative Tortac® technology has the properties of the Hypertac hyperboloid contact with the same pin diameter. This enables smaller pitches, higher contact densities and higher rated currents.

With the power connectors of the Transformer Heavy Power series, Heilind expands its stock for you with highly innovative and reliable products for high-voltage applications in rail transport.

Features:

  • Material: plastic with aluminium frame
  • Available in single- to four-pole versions
  • Supports up to 300A power, 3600V voltage and 12kV withstanding voltage
  • Simple assembly thanks to the use of only three contacts
  • Anti-Swaying device guarantees a safe and reliable solution for the cables and simplifies the installation of the jumpers
  • Developed according to EN50124 PD4
  • Design and testing according to NFF61030 & EN50467

Applications:

  • Individual connection solutions for manufacturers in the railway industry
  • Suitable for on-board applications requiring the transmission of very high currents such as power distributors, inter-coaches and bogies
  • Further areas of application: hybrid and electric vehicles
  • Can be used in dirty environments
  • Can be used with cables from 25 mm² to 70 mm²
