Amphenol LTW`s Ultra High Density "UHD"

High-Performance for Signal and Data Transmission

ALTW’s UHD (Ultra High Density) technology enables the integration of highest pin counts in all existing rugged circular connectors for applications space constraints but also high speed and high reliability transmission such as M8, M12, X-Lok, Ceres, RBL, M23, etc.

Features:

M Series Connectors

M8 Connectors

  • Plastic/ Metal Versions
  • Durability > 100 Cycles
  • Salt spray up to 1,000h
  • Robust PVC & PUR Overmolded Cables
  • 9-13 Contacts


M12 Connectors

  • Operating Temperature -40°C to +105°C
  • Nominal Current 1A
  • Meets IP67, IP68 and IP69K Ingress Protection
  • 18-36 Contacts

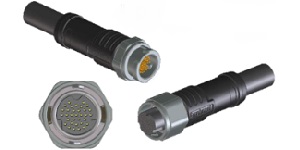

X-LOK Mini Size Connector

  • Plastic / Metal Version
  • Operating Temperature -40°C to +105°C
  • Durability 1,000 Cycles
  • Operating Voltage (AC/DC) 50V
  • Nominal Current 0.5A
  • Salt Spray Up to 1,000h
  • Contact Resistant 15mΩ Max
  • Meets IP68 Ingress Protection
  • Up to 33 Contacts

Applications:

  • Applications with small footprint
  • Industrial automation
  • Transportation
  • Automotive
  • Medical devices
