Waterproof Circular Connectors for use in harsch environments

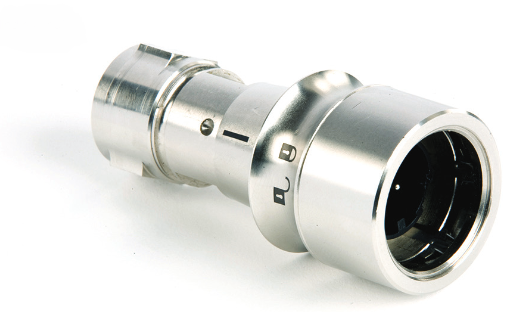

Bulgin's 6000 Series circular connectors are specifically designed for applications where dust and water ingress must be avoided.

The waterproof circular connectors can be immersed in water and are even resistant to strong water currents. The 600 Series connectors have a 30-degree locking mechanism and proven environmental sealing designed for IP68 and IP69K.

The competent product managers at Heilind Electronics will support you with their expertise in all questions concerning the specifications and application areas of the 6000 series products.

Features:

  • Material: plastic, metal
  • 30° twist lock
  • Easy to use
  • Available with 2 to 22 poles up to 16 A, 277 V Rated current
  • Available with plastic or metal housing
  • Supports data (USB and Ethernet) as well as signal and mains voltage
  • Touch-proof contacts prevent damage due to faulty plug connections
  • Screw, crimp and solder termination available
  • Polarization and visual alignment features
  • Developed and tested to IP66, IP68 & IP69K standards
  • Internationally recognized cULus, UL and VDE certification
  • Version with plastic housing: UL94-V0-certified, UV-resistant, halogen-free.

Applications:

  • Suitable for use in harsh environments such as marine or industrial environments
  • Suitable for blind plug connections
  • Suitable for flex, flex in-line & panel mount body styles
  • The version with plastic housing is suitable for applications in salt water as well as for long-term outdoor use.
