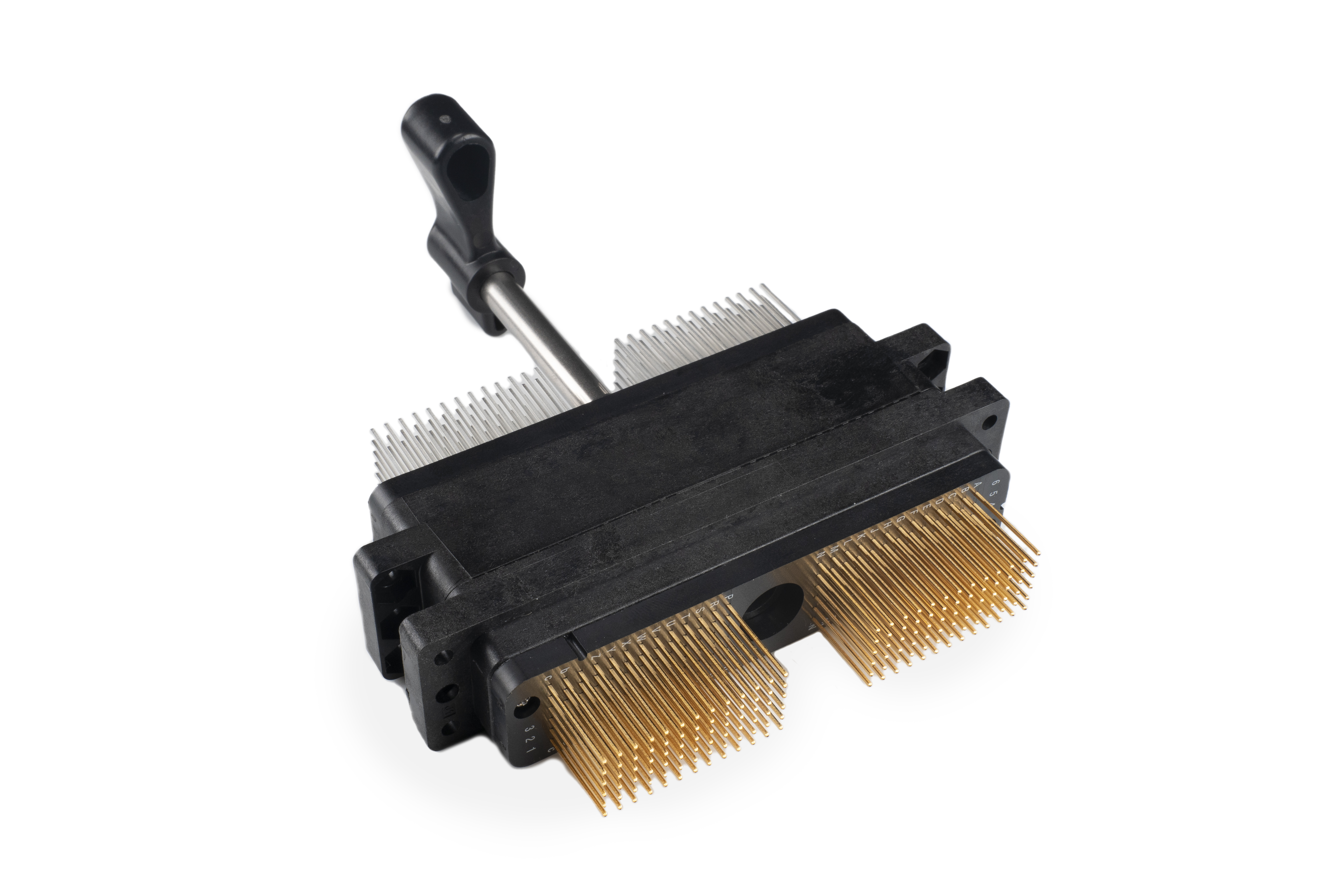

DL Series - ZIF Connector

The Cannon DL Series of Zero Insertion Force (ZIF) connectors fill the need for low-cost, high performance, multiple-wire power and signal connectors.  DL connectors feature a minimum rated life of 10,000 mating cycles with no performance loss. They can be mated and unmated in less than two seconds with up to 360 contacts. Combining their special design with commercial grade materials and low cost crimp, PCB, and wrappable hermaphroditic contact, that may be hand or machine terminated, makes the DL Series the finest low-cost-per-mated-line I/O ZIF connectors available today.

Features:

  • High pin count: 60, 96, 156, 260, 360, contact positions
  • ZIF Over 10K mating cycles
  • Plastic (DL) or metal (DLM) housing
  • Variety of contacts in Crimp, Square PCB Post, Square Wrap Post, Buss and PC/RC (Round PCB tail)

Applications:

    • Medical commercial (Ultrasonic)
    • Diagnostic & Imaging
    • Industrial
    • Defense
    • Transportation
    • Computer
    • Peripheral equipment
