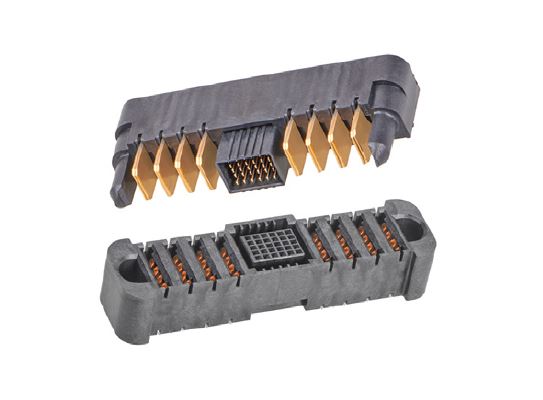

EXTreme Guardian HD Power Connectors

EXTreme Guardian HD Power Connectors offer configurable hybrid power/signal solutions and provide high-current density in a low-profile package for design flexibility.

The EXTreme Guardian Power Connector System addresses the need for reaching high-current densities (up to 185.0A per inch) in a compact form factor plus provides design flexibility with EMI/RFI shielding, complete overmolded harnesses and a non-overmolded set of standard harness components (available in 2 to 6 circuits).

Features:

  • Current density up to 80.0A per blade
  • PCB pegs
  • Through-hole solder and press-fit tails
  • Gold contact plating
  • Redundant contact design that handles up to 125V
  • UL and CSA certification
  • High temperature of 125°C power contact rating
  • Small centerline spacing of 5.15mm

Applications:

  • Telecommunication/Networking
  • Data/Computing
  • Industrial
