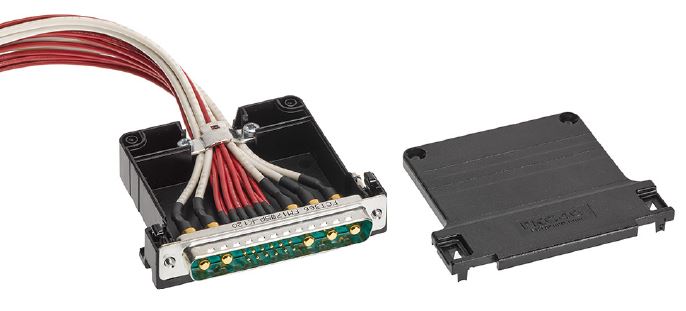

Plastic Backshells for D-Sub Connectors

Plastic Backshells for D-Sub Connectors, available with either straight or angled cable outlet orientations along with shielded (metalized) and nonmagnetic options, provide connector protection, strain relief and organized cable routing.

Features:

  • Cable clamp
  • Lid screws on far outside of backshell
  • RoHS compliant by exemption
  • Straight and right-angle versions available
  • Large inner chamber
  • Catch-spring system and pre-mounted locking screws available

Applications:

  • Commercial Aerospace
  • Medical
  • Scientific
  • Telecommunications / Networking
  • Defense
  • Industrial Automation

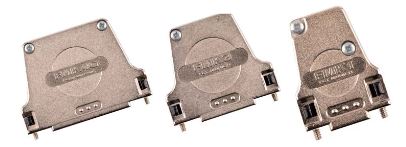

Metal Backshells for D-Sub Connectors

Metal Backshells for D-Sub Connectors are available with either straight or angled cable outlets and provide connector protection, strain relief and organized cable routing.

Features:

  • Rubber bushing
  • Catch-spring system and pre-mounted locking screws included
  • UL-recognized
  • Wide cable outlet
  • Cable clamp
  • Large inner chamber
  • RoHS compliant by exemption

Applications:

  • Manufacturing Equipment
  • Industrial Automation
  • Scientific
  • Medical
  • Commercial Vehicle

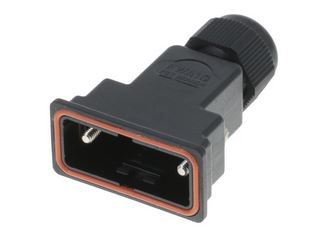

IP67 Backshells

A customizable silicon gasket positioned inside an off-theshelf Molex backshell provides a flexible, cost-effective means for achieving IP67 capability.
The key innovation in the Molex design was a custom silicon gasket that fits inside the existing IP67-rated D-Sub Backshell.

Benefits of Silicon gasket technology eliminates costly overmold tooling:

  • Flexibility of solution allows for lower minimum order quantities and shorter leadtimes
  • Almost exclusively uses off-the-shelf Molex components
  • Low tooling costs lead to no up-front customer investment
  • Able to forge reputation as a customer problem-solver
  • Position as valued partner leads to new business opportunities
