Mini-Fit Connector Family

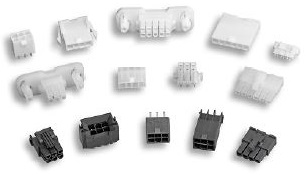

Molex Mini-Fit connector family delivers up to 13.0A, while blind mating and terminal position assurance options provide a versatile connector system for a wide range of applications. It also delivers operating temperatures up to +125° C, offers a dual crimp tool and is available in board-to-board, wire-to-board and wire-to-wire configurations.

A wide range of OEMs require high-current, high-density power connectors that also support design flexibility. To meet these needs, Mini-Fit Jr., Mini-Fit Plus, Mini-Fit Blind-Mate Interface (BMI) and Mini-Fit TPA2 Connectors offer polarized housings with isolated terminals, positive locks and low-engagement forces. All versions of Mini-Fit Jr. and Mini-Fit Plus Connectors are compatible with each other, including with Mini-Fit TPA2 and Mini-Fit BMI Components, bringing flexibility to the toughest design dilemmas.

Features:

  • Fully isolated terminals
  • Polarized mating geometry
  • Receptacles and plugs accept both standard Mini-Fit and Mini-Fit Plug crimp terminals
  • Positive locking housings
  • Crimp terminals are produced from a proprietary, high-current alloy
  • Terminals feature a patented, elongated dimple design
  • Self-aligning interface
  • Backshell option available
  • Select series offer up to 1,500 mating cycles with gold terminals; standard series support 100 mating cycles with gold-plated terminals; 75 mating cycles with tin-plated terminals
  • Blind-mating interface
  • Terminal position assurance (TPA) with secondary locking feature
  • Panel mount and vertical header options
  • Visual color pairing (colors can be intermated)
  • V-0 Glow Wire combination resin
  • Robust latch design

Applications:

  • Automotive
  • Commercial Vehicle
  • Consumer
  • Data/Communications
  • Home Appliance
  • Industrial
  • Industrial Automation
  • Medical
  • Telecommunications/Networking
