SMPM-Lock by Radiall

SMPM-LOCK is the smallest connector on the market with a locking system. This connector provides a safe connection in shock and strong vibration environments. Made with the SMPM interface, Radiall has added a locking nut and a locking ring to secure connections in any type of installation, even in the tightest spaces. The right-angle plug version saves even more space.The locking system is simple to implement, quick to lock and very secure when the two interfaces are connected.

Features:

  • High frequency: 65 GHz

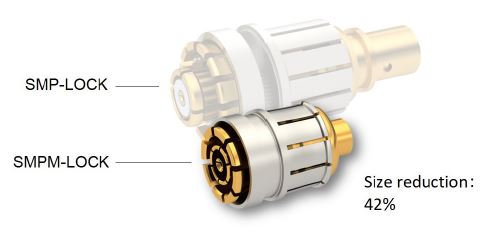

  • Reduces SMP-LOCK’s size by 42%
  • Temperature range: -65 °C to 165 °C
  • IP6x sealing option
  • EMI shielding option: up to 80 dB @ 40 GHz
  • Vibration: MIL-STD-202G Method 204, test condition D
  • Shock: MIL-STD-202G Method 213, test condition I
  • Cable retention force:
    • Semi-rigid cable: .047 F > 45 N

Applications:

  • Radar
  • Missile
  • Electronic Warfare
  • Drone
  • Auto Director
  • Military Radio
