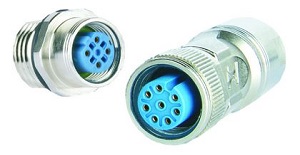

M12 Series Connectors

The compact and robust design of Smiths Interconnect's M12 connectors incorporates the industry-leading Hypertac hyperboloid contacts, which offer unmatched performance, ease of use and unparalleled reliability. With its unique side-loading contact retention system, the M12 provides secure contact retention that simplifies the assembly process and reduces assembly time. Within a common housing design, the M12 series includes deployment options from 3 to 8 ways, with both crimp and solder contact connections available.

In real-world industrial deployment scenarios, the M12's comprehensive sealing features provide a competitive advantage by ensuring uninterrupted signal integrity by keeping out dust, moisture, dirt and oil that could compromise the connection. All connectors have excellent protection against electromagnetic interference through a 360° shield connection.

Features:

  • Up to 8 contact positions
  • Compact IP67 metal shell
  • 360° EMI shielding
  • Hyperboloid contact technology
  • Compliant with fire and smoke standards
  • A and D coded versions

Applications:

  • communication applications
  • factory automation
  • drive motors
  • machine tools
  • conveyor systems
  • handling machines
  • elevators
