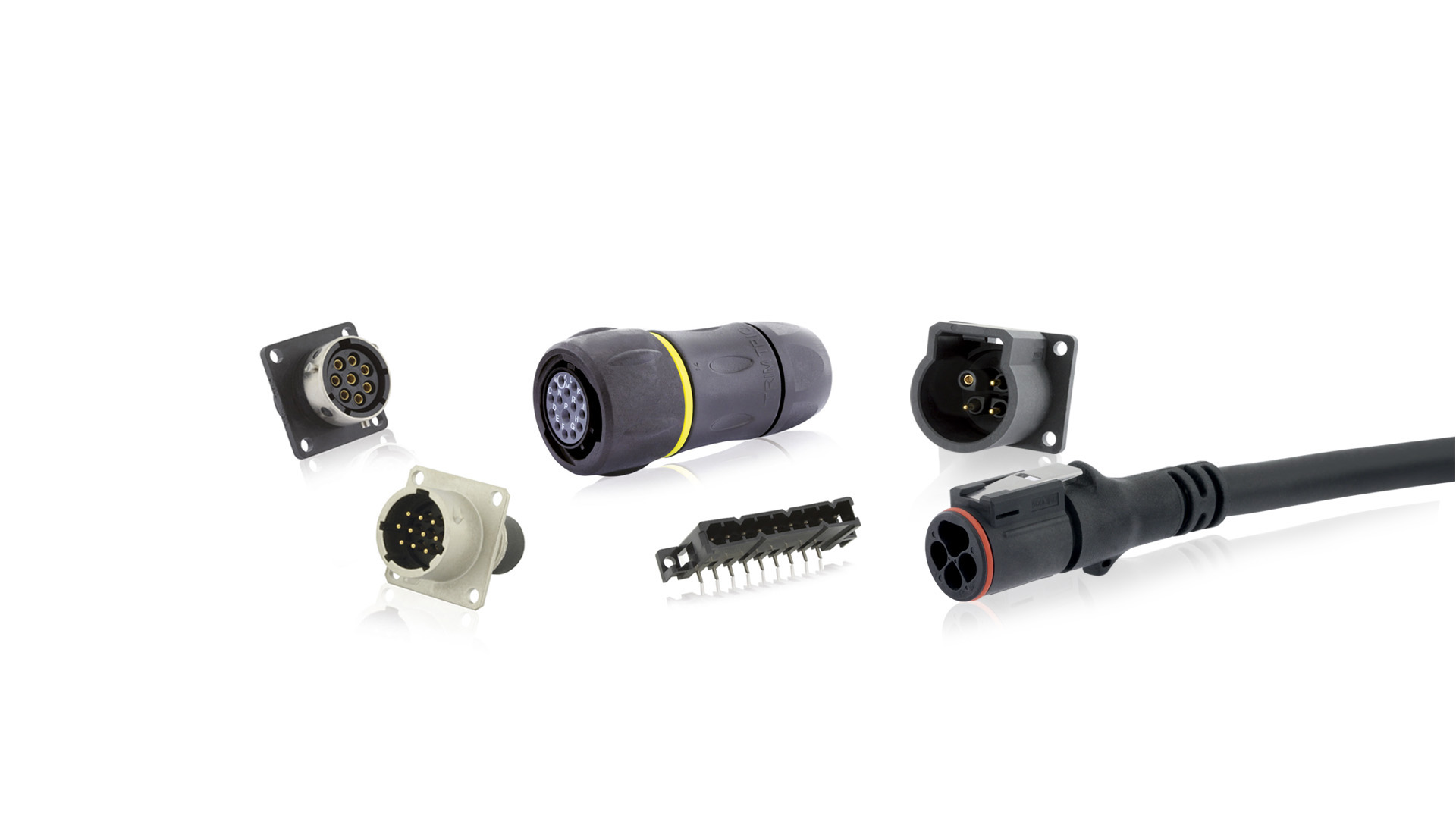

Circular Connectors Trim-Trio

Trim-Trio circular connector features a wide variety of insert arrangements for plastic, metal, and bi-metal connectors. They are fitted with gauge contacts for signal, coaxial, and fiber-optic power Connections. For many industrial markets a cost-effectibe solution.

The design of the Trim-Trio connectors is based on a simple concept: enable manufacturers to use a single
type of contact for different types of connector in order to simplify the management of their shell and contact
inventories and tailor their connectors to specific applications. For example, a plastic, metal, or bi-metal connector may be used in different environments, but the form-factor of the insert arrangement is the same and the connectors are both interchangeable and intermateable.

Features:

  • several surface treatments
  • circular bayonet connector
  • one-third-turn locking ring
  • IP68/69K sealing
  • UV resistance of more than 1000 hours
  • more than 500 mating cycles
  • impact and vibration resistance
  • connectors are available either stamped and formed or machined
  • gold- or tin-plated, or receive a combined surface treatment
  • easy to crimp using standard tools

Applications:

  • high-speed signals
  • optical signals

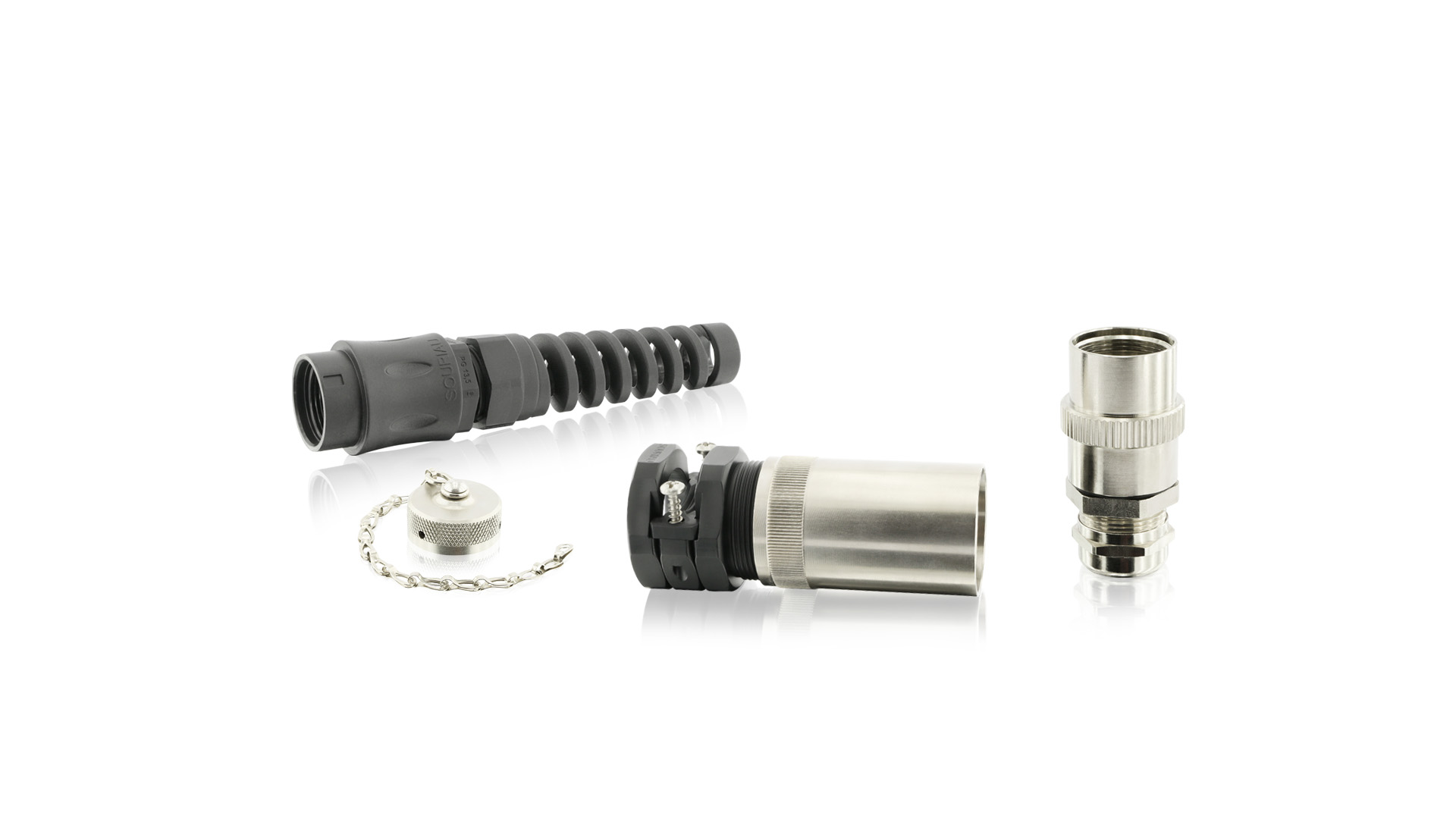

Accessories:

Esterline Connection Technologies is a world leader in the harsh environment interconnect solutions market with a strong culture of operational excellence. Composed of two highly respected interconnect brands, SOURIAU and SUNBANK, Esterline Connection Technologies is a global designer, manufacturer and supplier of high-performance and high-reliability interconnect products for the following markets: aviation, defense & space, energy & transportation and general industry.

Video

Trim-Trio Connectors
