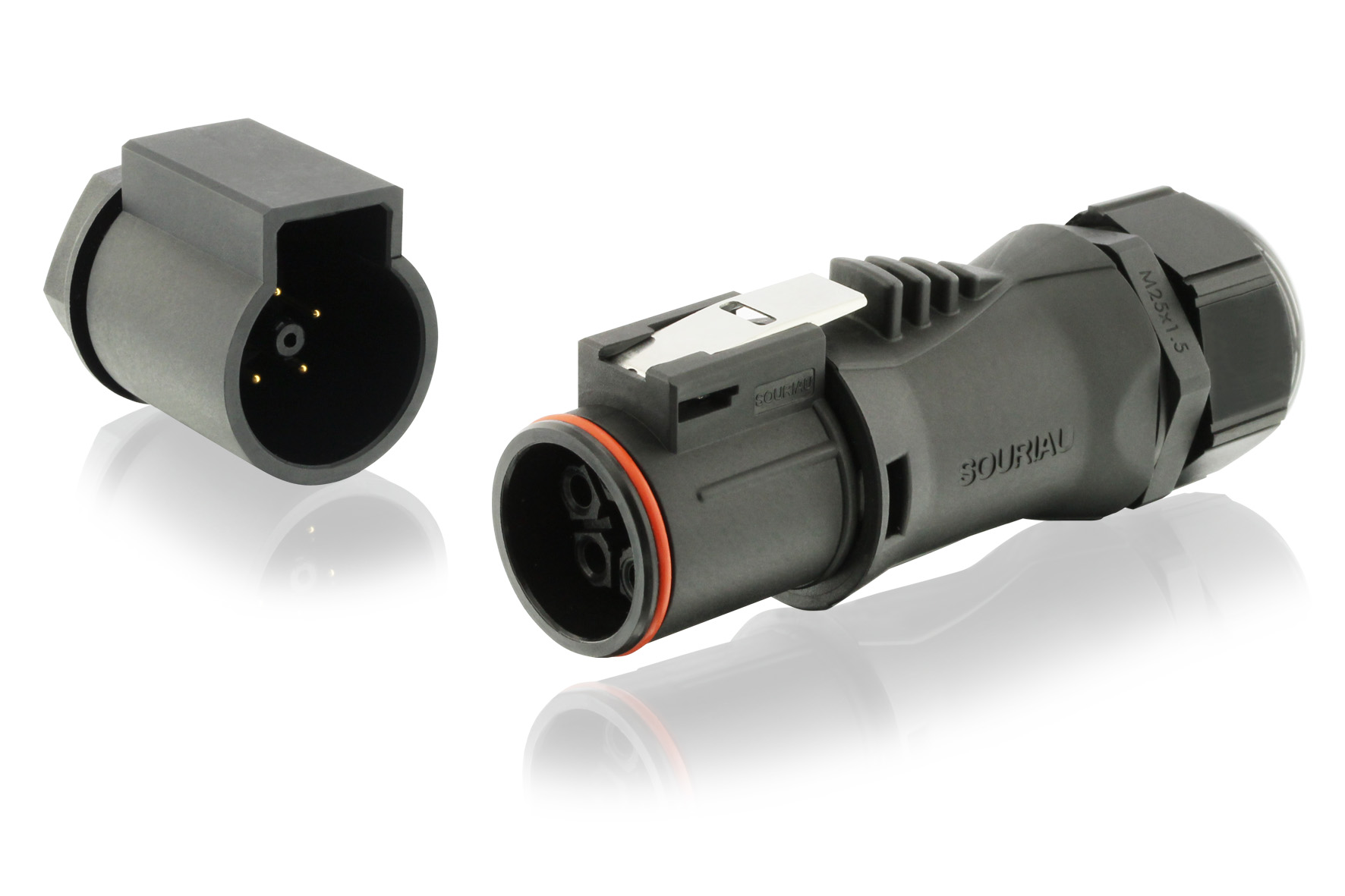

Five-pin UTL range

New five-pin UTL range: all-terrain connector for industrial applications.

Five-pin UTL range is not only very simple to use, it is also perfectly suited to applications that require field wiring. Engineered in compliance with IEC 60320, IEC 69184 and UL 1977, the five-pin is a must for new industrial facilities and field facilities.The five-pin UTL connector significantly improves tasks for operators working on aerial work platforms or in tight spaces. A screwdriver is all that fitters need to connect wires to the five contacts.

Features:

  • blind pluggable and failsafe
  • withstand over 1000 connections and disconnections
  • is usable over a temperature range of –40°C to +105°C
  • Connectors can be used up to 16 A
  • tensile and impact-resistant, tight and vibration-resistant cable connection
  • of cause IP68 and IP69K protection and are resistant to high-pressure water
  • accommodate flexible wires with cross-sectional areas of 1.5 to 2.5 mm²

Applications:

  • Industrial applications
  • mobile equipment
  • connector is available for front mounting onto 3.2 mm panels
