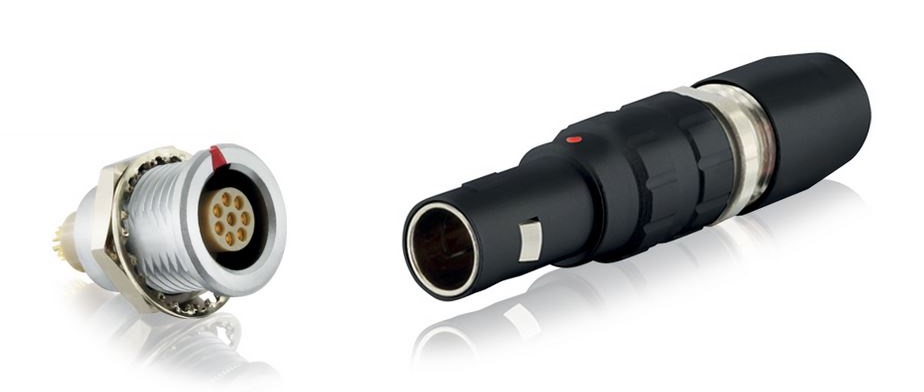

JBX Series - IP40/IP68 Metallic Push-pull Connector

JBX connectors guarantee a reliable and secure connection by using a push-pull locking mechanism that requires only two fingers to mate and unmate the connector. An audible and visual indicator will ensure a reliable locking, capable to resist to more than 5,000 cycles.

The 360° EMI shielding ensures a proper transmission and signal integrity which makes it optimal for high resolution imaging applications. The use of 0.5 mm contacts and miniature housing make JBX connectors suitable for tight application.

Mixed layouts combine power and signal contacts in a unique interconnection solution to reduce system complexity and minimize component /installation cost.

Features:

  • Easy and Safe: Audible, tactile and visual indicator - 5,000 cycles
  • Waterproof: IP68 in Mated and Unmated Conditions
  • Signal Integrity: 360° EMI Shielded, less than 5mΩ
  • Space Savings: High Density Layouts with the use of 0.5 mm contacts
  • Cost Savings: Mixed Power & Signal Layouts

Applications:

  • Medical
  • Building automation
  • Instrumentation
  • Measurement
  • Off-road
  • Mining
  • Telecom
