MSR relay: The power relay for switching loads up to 8A

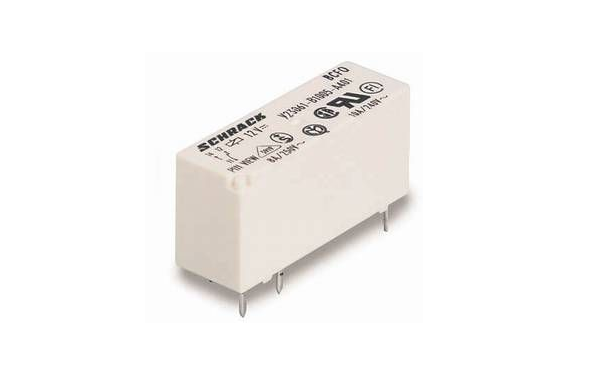

[Translate to Englisch:] TE Connecitivity's MSR V23061

MSR relay: The power relay for switching loads up to 8A

The MSR relays from TE Connectivity: Mid-Size - Power relays for switching loads in the medium range up to 8A/10A.

The relays of this family are characterized by high reliability and can be found in motor controls and in numerous household applications.

The option of a gold-plated contact also allows signal currents to be switched reliably.

Features:

  • 1 pole 8A/10A, 1 NO contact, 1 CO contact Contact
  • High-Inrush peak current of 65A (TV4) possible with AgSnO2 contact material
  • Mono- or bistable coil version
  • 4kV/8mm coil contact
  • Reinforced insulation class II
  • Ambient temperature up to 85°C with 8A
  • Product according to IEC60335-1corresponding

Applications:

  • heating controls
  • air conditioners
  • ventilation systems
  • HiFi Products
  • timers
  • power supplies
  • PLC's (PLC controls, logic controllers)
  • TV and monitor control systems
  • Household products (refrigerator, washing machine, dishwasher...)
