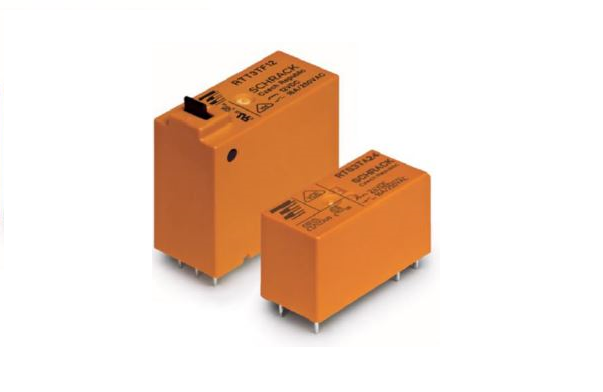

RT1 - The power relay for all critical assemblies

[Translate to Englisch:] TE Connectivity's RT1

The RT1 Inrush Power series from TE Connectivity can be used for a variety of applications.

Due to the high high-inrush current of up to 165 A, the relay is capable of switching almost all loads within its rated switching current of 16 A. It is therefore also ideally suited for applications in which the "end customer determines the consumer".

Features:

  • 1 pole 16A, 1 form A (NO) contact (W pre-make contact + AgSnO2)
  • 165A/20ms inrush peak current
  • Mono- or bistable coil
  • 5kV/10mm coil-contact
  • Reinforced insulation
  • Test tab (manual operator) optional
  • WG version: product in accordance to IEC60335-1

Applications:

  • lighting systems
  • intelligent building control, alarm and medical technology
  • motion detector
  • all types of motor controls
  • garage door operators
  • elevators
  • escalators
  • compressors
  • mains cut-off switch
