TE Connectivity T9G: The Versatile PCB-Relay

T9G Relays from TE Connectivity
T9G Relays from TE Connectivity

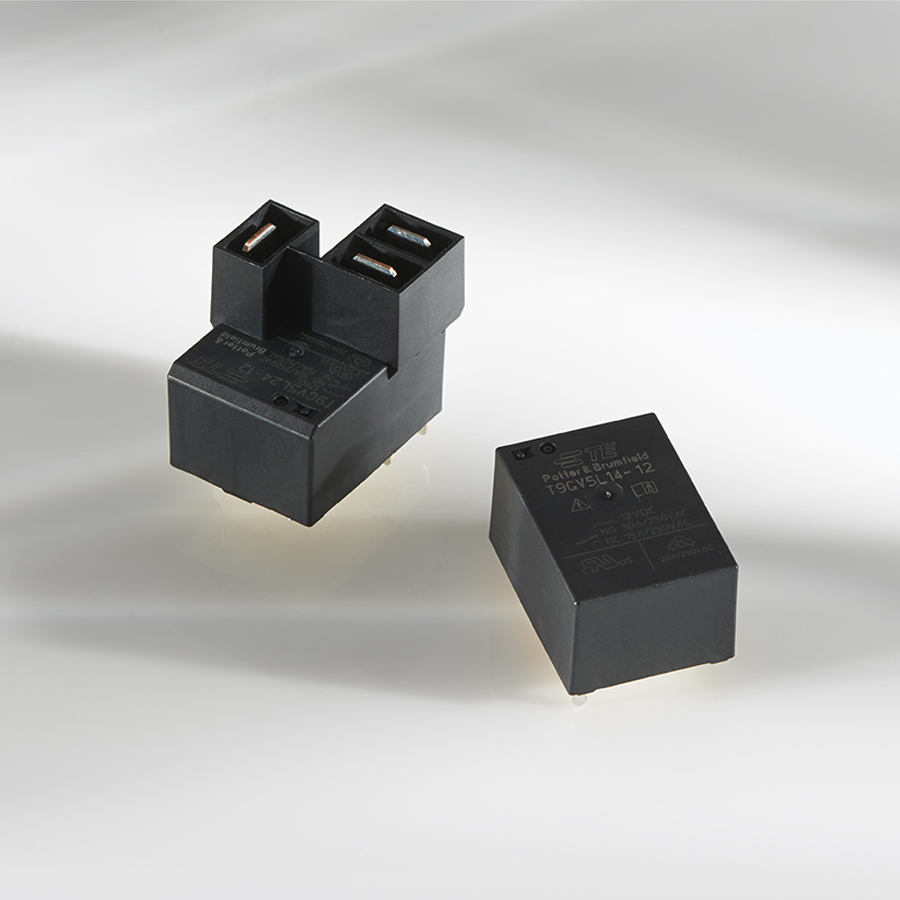

TE Connectivity’s Potter & Brumfield T9G relay series is a 30A Power PCB relay for HVAC, appliance and industrial control applications.

The T9G relay is the smallest relay in its class with a 30% smaller package size and 13% less PCB flor space all while keeping the standard footprint, allowing manufacturers to add more components on PCBs without having to compromise on relay performance. By having both UL and VDE certifications, TE’s P&B relay T9G series is a versatile relay that can be used globally and through its PCB and quick connect terminations, it is user-friendly and easy to install.

Features:

  • 30% smaller package size
  • Creepage / clearance (8mm @ voltage ratings up to 480VAC)
  • with reinforced insulation
  • UL, VDE and CQC Listing
  • PCB and Quick Connect terminations
  • RoHS Compliant Cadmium Free Contact
  • Better PCB utilization in same footprint



Applications:

  • HVAC
  • Appliances
  • Industrial Controls
  • Energy Management

Specifications:

  • UL 508
  • UL E214025
  • IEC 61810-1
  • VDE 40045012

Materials:

  • Contact Material: AgSnO

Electrical:

  • Rated current: 30 A
  • Rated voltage: 480 VAC Max.

Mechanical:

  • Contact arrangement: 1 form A (NO), 1 form B (NC),1 form C (CO)
  • PCB mounting or PCB mounting with quick connects
  • Wash-tight (with knock of nib) or Flux-proof plastic case
