VAL-U-LOK connectors for solid value

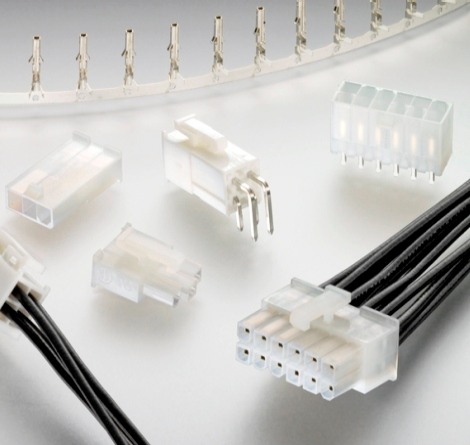

VAL-U-LOK connectors offer wire-to-wire and wire-to-board connections with contacts on a .165” [4.20mm] centerline pitch. New models have current ratings up to 13A per line along with a max. 600VAC rating, while legacy types offer a maximum current rating of 9A per line. Plug and receptacle housings allow wire-to-wire and wire-to-panel configurations and header assemblies offer vertical and right angle wire-to-board connections. VAL-U-LOK connectors are available in dual row 2-24 position and single row 3-5 position models. Vertical headers are available with optional polarization pegs and drain holes and offer a blind mate version. Right angle headers offer optional screw mount flanges. Crimp, snap-in pin and socket contacts terminate 26-16 AWG [0.12-1.2mm²] wire with insulation diameters up to .094” [2.39mm].

Features:

  • 2-24 position discrete wire interconnect
  • Wire-to-wire and wire-to-board pin and socket connector system
  • .165” [4.20mm] pitch
  • Up to 13A max. current rating for new high current types, 9A for legacy types
  • Contacts are offered in strip form or loose piece
  • Mate First/Break Last feature on 3 position single row receptacle housings
  • Vertical and right-angle pin headers
  • Housings offered in Glow Wire compatible material
  • UL recognized and CSA certified

Applications:

  • Household appliances
  • Desktop computers
  • Security systems
  • Industrial controls
  • HVAC system controls
  • Storage and networking system
