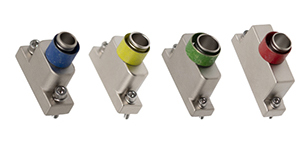

Dura-Con Micro-D EMI Back Shells

Cinch Dura-Con Micro-D EMI Back Shells (DCBS) connect cable shields to Micro-D connectors and provide strain relief and mechanical and electromagnetic protection. Seamless to install for a variety of harnesses. Back shells can be delivered with braided sleeves of specified lengths. Available for all Cinch Dura-Con Micro-D shell sizes.

Backshell hardware passes through the backshell and connector shell. The hardware retains both shells with a retaining clip at the base of the threads. A crimp sleeve is included for bonding a braided sleeve to the backshell wire entry.

Features:

  • Multiple entry sizes
  • Available for all Cinch Dura-Con Micro-D shells sizes: 9 to 100 pins
  • Aluminum alloy shell available with electroless nickel plating
  • Jackpost, socket head hardware and retaiing clip included
  • Crimpable ferrule sleeve included for bonding braided sleeve to wire entry

Applications:

  • Commercial and Military Aircraft
  • Advanced Communications Equipment
  • Industrial and Military Robotics
  • Rugged Exposed Micro-D Cables
