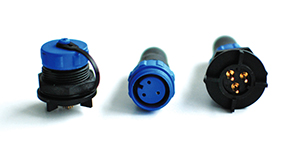

400 Series Buccaneer

One of their most compact connectors within the Buccaneer range, the 400 Series Buccaneer is ideal for designs requiring a small footprint. Taking a selection of great features and specifications from the larger Buccaneer family, the 400 Series miniature power connectors condenses them into a compact form factor giving engineers greater flexibility.

With a lightweight and rugged construction, these sealed circular plastic connectors offer highly reliable power or signal connections for use within medical, industrial, infrastructure and automotive applications where space is limited.

Features:

  • IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m depth for 2 weeks
  • IP69K, Tested in accordance with DIN 40050/Part 9 IP6k9k
  • 2 and 3 Contact - 8A, 250V rating
  • 4, 6 and 8 Contact - 5A, 125V rating
  • 10 and 12 Contact - 1A, 50V rating
  • 2.5mm contact engagement for electrical integrity ‘Scoop proof’ contacts
  • Contact inserts are part of body moulding
  • Cable range from 3 to 7mm
  • Overall length (flex + Inline) 80mm
  • Gold plated contacts
  • Diameter over coupling ring 19.1mm
  • Pre-wired, overmoulded cable assemblies
  • Flex, Inline, Front Panel, Rear Panel and PCB mounting body styles
  • Plug and Socket versions in all body styles
  • Flame Retardant moulding material – Polyamide UL94-V0
  • Contacts supplied separately (except PCB versions)
  • Sealing caps available to maintain IP68 rating
  • Secure sealing system
  • Crimp and solder contacts
  • PCB mounting connector supplied with contacts pre-loaded
  • Front and rear panel mounting panel connectors
  • UL, CSA and VDE approvals
  • EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1
  • Smart options available with EEPROM memory chip

Applications:

  • Industrial
  • Marine
  • Medical
  • Agriculture
  • Transport & Infrastructure
  • Automotive
  • Renewable Energy
  • Recreation & Leisure
