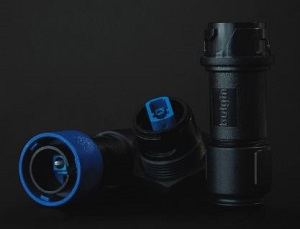

4000 Series Simplex LC Fiber Buccaneer

As the smallest rugged optical connector available on the market, the 4000 Series from Bulgin Fibre Simplex connector is ideal for outdoor broadcast, FTTX (fibre to the x), server room engineering, civil engineering, marine, aviation and rail applications. When installation space is limited or if multiple connectors need to be accommodated, the small form factor of the connector is particularly useful.

Features:

  • Sealed to IP66 IP68 and IP69K when Mated
  • IP68 Rating Tested at 1.054kg/sq cm (15lb/sq in) 10m Depth for 2 Weeks
  • Simplex LC-Type Interface
  • Cabled Versions: 0S1, 0M1, 0M3
  • Cable Range from 5 to 450M
  • Diameter Over Coupling Ring 19.7mm
  • Flex, Flex In-Line & Rear Panel
  • Colour Coded O-rings & Washers for Easy Identification Purposes
  • Secure, Proven Locking System
  • Flame Retardant Moulding Material - Polyamide UL94-V0
  • Tamper Proof Construction
  • Sealing Caps Available to Maintain IP68 Rating
  • EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1

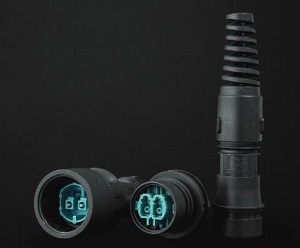

6000 Series Duplex LC Fiber Buccaneer

The 6000 Series Fiber connectors from Bulgin are built to withstand the harshest of environments. Rated IP66, IP68 and IP69Kwhen mated, the connectors also feature a secure, yet easy to operate 30-degree locking mechanism. This tamper-proof locking prevents accidental disconnection of the plug connection. IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m depth for 2 weeks Duplex LC-Type Interface, the connector also features EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1.

Features:

  • Sealed to IP66 IP68 and IP69K when Mated
  • IP68 Rating Tested at 1.054kg/sq cm (15lb/sq in) 10m Depth for 2 Weeks
  • Duplex LC-Type Interface
  • Cabled Versions: 0S1, 0M1, 0M3
  • Cable Range from 5 to 450M
  • Diameter Over Coupling Ring 32.0mm
  • Flex, Flex In-Line & Rear Panel
  • Secure, Proven Locking System
  • 30° Twist Locking - Tamperproof Lock Prevents Accidental Un-Mating
  • All Plastic Body Version; UL94-V0 Rated, UV Stable, Halogen Free
  • Light-Weight, Self-Extinguishing Material Suitable for Long-Term Outdoor use.
  • Sealing Caps available to Maintain IP68 Rating
  • EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1

Applications:

  • Outdoor broadcast
  • FTTX (fiber to the x)
  • Server room engineering
  • Civil engineering
  • Marine
  • Aviation
  • Rail applications
