DX07 Series USB4™ 40Gbps Connector

JAEs USB4™ is the newest revision to the USB specification supporting transmission speeds of up to 40Gbps, which is double that of the previous USB 3.2 revision.

The idea of tunnelling, which allows multiple protocols to be combined over a single interface, has also been introduced to increase flexibility.

USB 3.2 data, display (DisplayPort) and load/store (PCIe) information tunnelling is possible depending on the device. It also allows devices to intelligently allocate the total available bandwidth based on the requirements of the devices which are connected.

The same USB Type-CⓇ form factor has been carried over to ensure backwards compatibility. However, there are new signal integrity requirements for USB4 which required the development of completely new and improved connectors and cables.

For the first time, there are normative, or mandatory, signal integrity requirements for individual connectors that must be met in order to be certified for use in USB4 40Gbps devices.

AppearancePart NumberFeatureTID (Certification number)

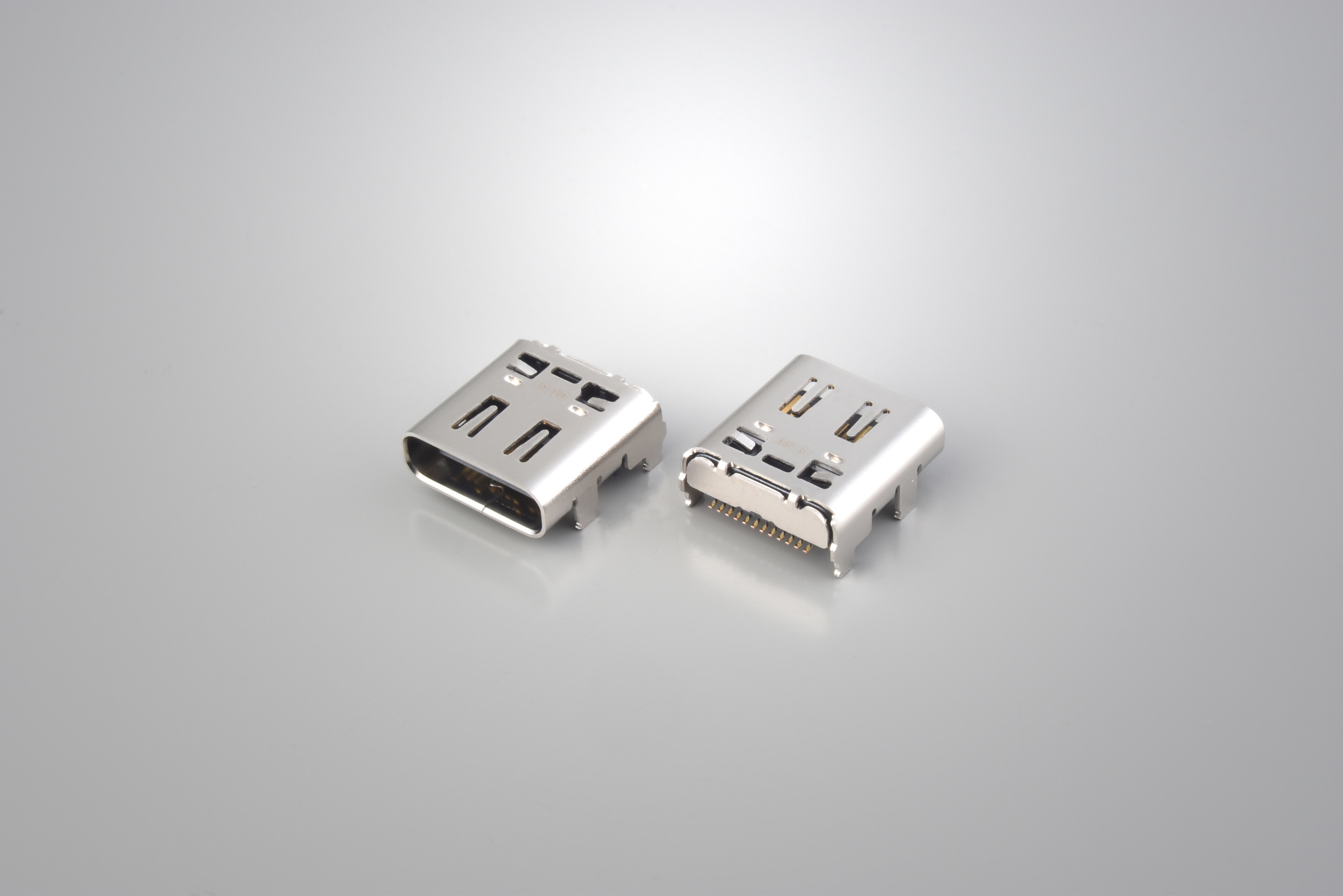

Receptacle Connector

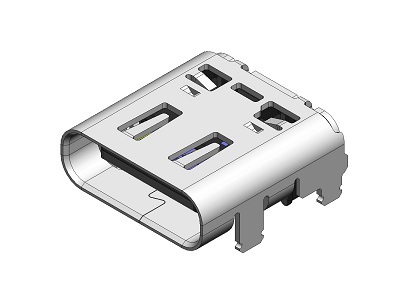

 DX07S024JAAR1100

C/H: 1,57mm
Onboard
2-row SMT

 4729

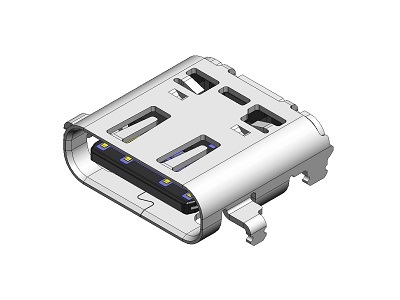

 DX07B024JAA

C/H: 0,47mm
Midmount
2-row SMT

 5067

 Plug Connector

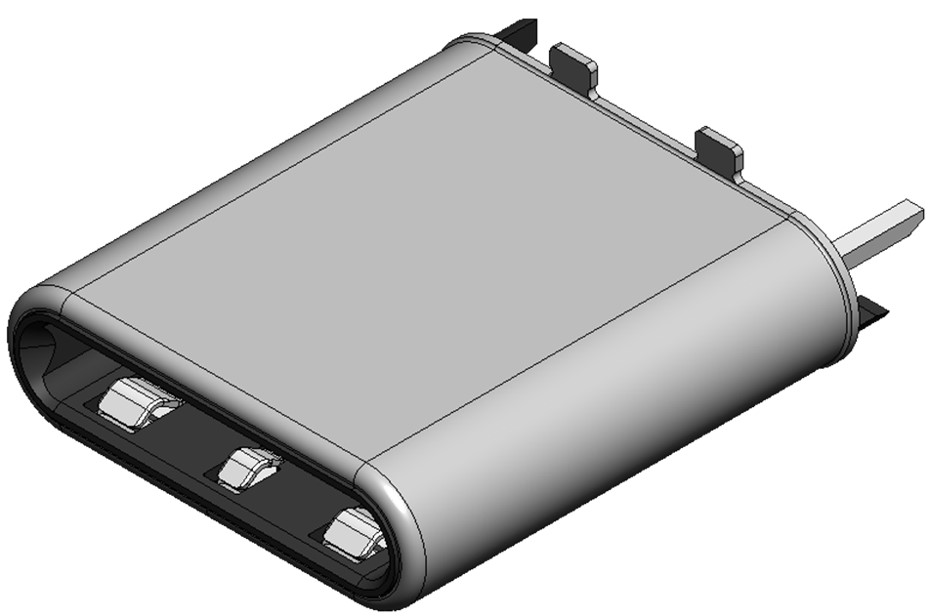

 DX07P022FA1

For cable harness
22 position
Deep drawn shell

 -

 Cable Harness

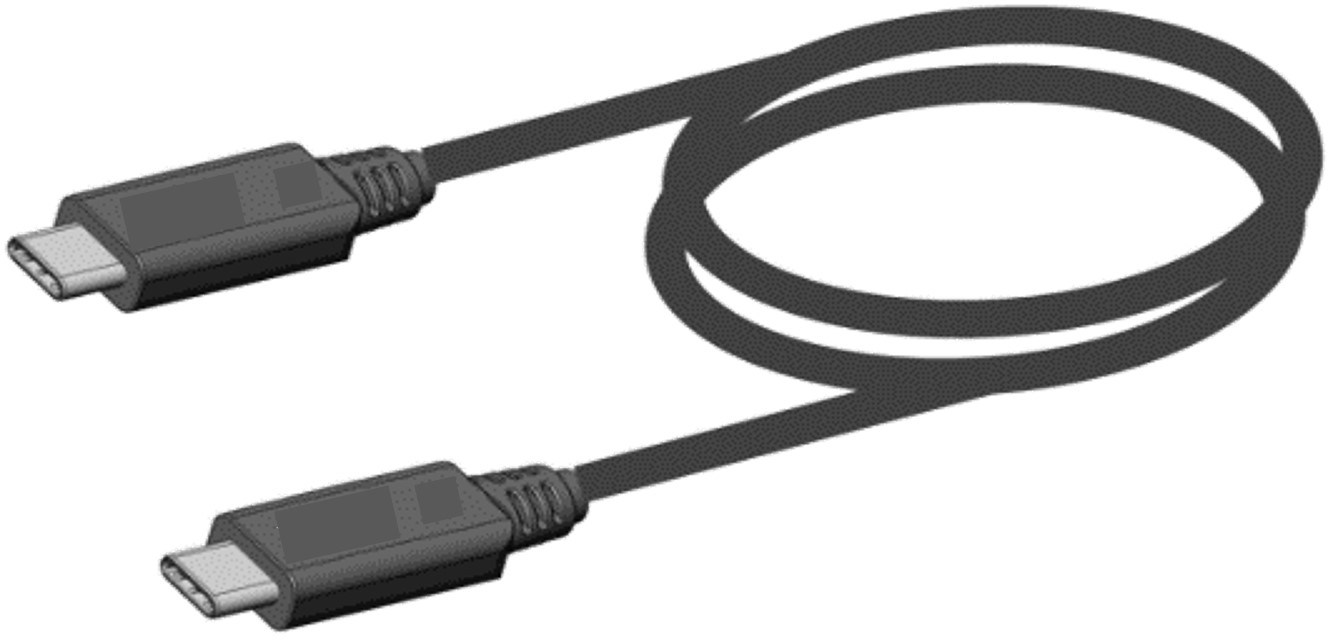

 DX07880B80P*****

Type-C ⇔ Type-C
Passive Cable
80cm Length

 4636

Features:

  • Compliant with Universal Serial Bus Type-C Specification Release 2.0
  • USB4 40Gbps (Gen 3) certified.
  • Supports 5A max. power supply. (Compatible with USB Power Delivery)
  • Optimized contact design for superior Signal Integrity performance.

Applications:

  • VR/AR
  • Cameras
  • Smartphones
  • PC’s
  • High Resolution Displays
  • Gaming
