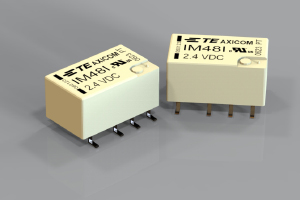

IM Relay from TE Connectivity - the relay series with many application possibilities

The IM Signal Relay from TE Connectivity (Brand: Axicom) is one of the smallest electromechanical relays which is used in several applications in the field of communication, consumer goods, building management and medical technology. The series impresses with low power loss and high shock resistance (functional up to 50g).

The relays are available as mono- and bistable versions both as THT and SMT. SMT types are usually available in rolls of 1,000 pieces or more. However, at Heilind we can supply you with any desired quantity!

Features:

  • 50 - 200mW coil power, often also bistable (latching) versions
  • SMT design fpr reflow soldering
  • Small design (10 x 6 x 5,65mm)
  • Typically 2 form C contacts

  • 2A / 5A with a switching capacity of 60W / 62.5VA at switching voltages up to 220VDC / 250VAC

  • High contact reliability

  • High voltage resistance of up to 2500 Vrms between coil and contact set

Applications:

Data Communications, Telecom, Consumer, Office Equipment, Intelligent Buildings, Alarm and medical technology

  • Network systems
  • Modems
  • Test equipment
  • Wireless infrastructure
  • Antenna switching
  • High speed routers
  • Medical ultrasound equipment
  • Printers
  • IP phones
  • Thermostats
  • Emergency lighting
  • Fire & security control
  • Cameras

Video

IM-Relays from TE Connectivity
