Rugged, Spring-Loaded Wire Termination connectors

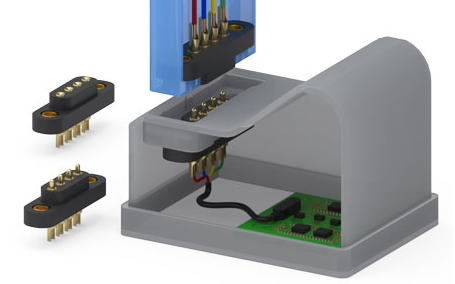

With the new Series 868 connectors, MILL-MAX offers extremely resilient spring and target connectors with solder connections. The cable terminations have solder cups for fixing wires and cables as well as flange insulators and mounting options.

868 Series connectors are available in 4mm pitch and 2-6 positions. The heavy-duty spring pins have 1.27 mm (0.050") diameter tappets, which have strong bending and bonding strength under shear forces. Each spring pin is designed for 9 amps at a temperature increase of 10°C and contact resistance less than 20 mΩ.

As a special distributor Heilind offers with the products of the series 868 robust connectors, which can be fastened safely to housings or printed circuit boards thanks to the mounting lugs, which are integrated into the insulators.

Features:

  • Material: Copper alloy coated with 20μ" Gold via 100μ" Nickel (piston and base), stainless steel 302 coated with 10μ" Gold via nickel (spring), heat-resistant thermoplastic approved to UL94 V-0 (insulator)
  • Efficient soldering of cables up to 16 AWG
  • Reliable operation up to 1 million cycles
  • Rated current of 9 A at a temperature increase of 10°C above the ambient temperature (20°C)
  • Contact resistance of max. 20 mΩ
  • Spring pins have a maximum stroke of 2.29 mm (0.090")
  • Target connector available with flat or concave surface on the mating side of the contact pins
  • Nylon 46 Insulators Compatible with RoHS Soldering Processes
  • Low stress relaxation at higher temperatures (260°C max. at 1 hour, 180°C max. at 24 hours)

Applications:

  • Suitable for installation in housings of docking stations, cable terminations, heavy duty quick connects and panel mount equipment.
  • Ideal for applications requiring highest conductivity, corrosion resistance and durability.
