Performance Rated Switches

Performance Rated Switches

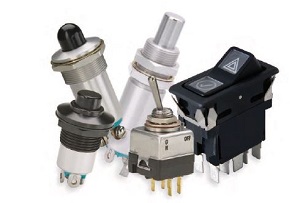

Each switch design is optimized for your particular application by using the appropriate switch mechanism. Options include extended-life, snap-action, tapered, and limit switch versions. Performance ranges from logic level to high power applications. Safran Electrical & Power Sarasota plant offers the full line of switch products; toggles, pushbuttons, rockers, snap action, sealed limit and all the associated switch guards and shields. Our inventory covers them all.

Harsh Environment Target Markets / Applications:

  • Construction Equipment
  • Mining Equipment
  • Road Paving Equipment
  • Concrete / Cement Mixing Equipment
  • Industrial Lifting Equipment
  • Agriculture Equipment
  • Specialty Vehicle (Fire Trucks, Ambulances, etc.)
  • Military Ground Vehicle
  • Aircraft On-Ground Support
  • Outdoor Power Equipment
  • Boat Manufacturers/Marine Industry
  • Food/Beverage Equipment

Benefits:

  • Long History of Supply – 50 Years (formerly Eaton / Cutler-Hammer)
  • Switch Life has exceeded 100,000 cycles – Customer Tested
  • 24 Month Warranty
  • Quality Product – 100% Tested
  • Heavy duty design – Built to Last
  • Military Specifications (MS / MIL-spec) Products

MIL-specs:

  • Switches: MIL-DTL-3950
  • Switch Guards: MIL-DTL-7703

Downloads

SeriesDescriptionMil-SpecificationAdditional Info

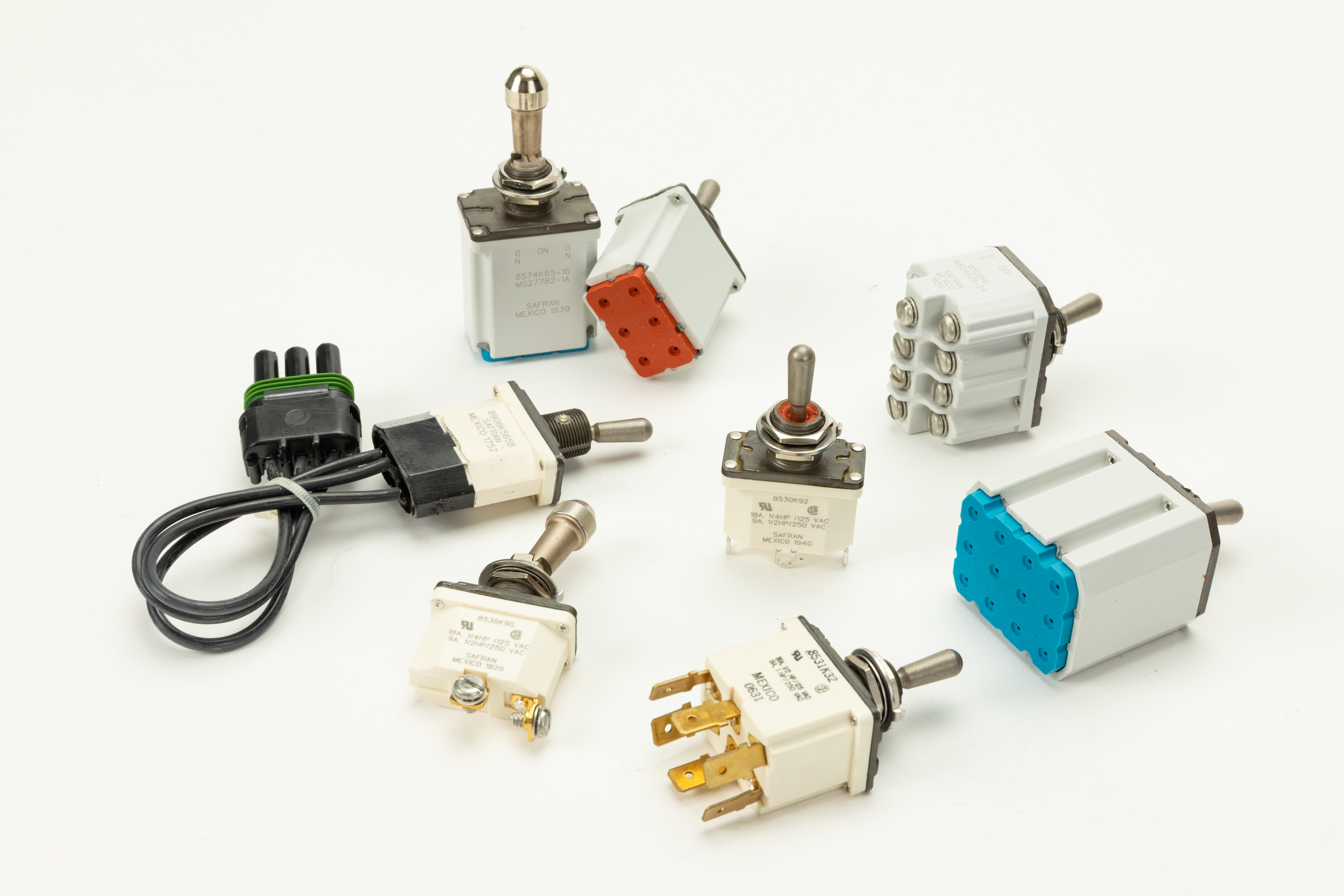

Toggle Switches
8510-8512Industrial Sealed Toggle SwitchesDatasheet
8520-8528Industrial Sealed Toggle Switches (UL/CSA)Datasheet
8566-8568Industrial Sealed Designer-line Toggle SwitchesDatasheet
8530-8532Industrial Econoline Sealed Toggle SwitchesDatasheet
8536-8538Econoswitch Sealed Lever-lock Toggle SwitchesDatasheet
8533-8535Econoswitch Sealed Designer-line Toggle SwitchesDatasheet
8500-8502Mil-S-3950 Toggle SwitchesMS24523, MS24524, MS24525, MS27406, MS27407Datasheet
8503-8505Mil-S-3950 Lever-lock Toggle SwitchesMS24658, MS24659, MS24660, MS27408, MS27409Datasheet
8570-8572Mil-S-3950 IWTS Toggles SwitchesMS27722, MS27723, MS27724, MS27784, MS27785, MS27786Datasheet
8573-8575Mil-S-3950 IWTS Lever-lock Toggle SwitchesMS27781, MS27782, MS27783, MS27787, MS27788, MS27789Datasheet
A-3Mil-S-8805 Multi Circuit SwitchesM8805/93Datasheet
8836-8845Mil-S-8834 Sealed Positive Action Toggle SwitchesMS25306, MS25307, MS25308, MS14001, MS14002, MS14003, MS24612, MS24613, MS24614Datasheet
8836KP-8838KPFlush Mount Sealed Positive Action Toggle SwitchesDatasheet
8866-8869Mil-S-8834 Miniature Positive Action Toggle Switches (Solder)MS24655, MS24656Datasheet
8866-8869Mil-S-8834 Miniature Positive Action Toggle Switches (PCB)MS21354, MS21355, MS21356, MS21357, MS21433, MS21434Datasheet
8855-8856Mil-S-8834 Miniature Positive Action Toggle Switches (Lever-lock/Solder)MS21026, MS21027, MS21436, MS21437Datasheet
8855-8869Mil-S-8834 Miniature Positive Action Toggle Switches (Lever-lock/IWTS)MS21346, MS21347Datasheet
88544 Pole Miniature Positive Action Toggle SwitchesDatasheet
88794 Pole Miniature Positive Action Lever-lock Toggle SwitchesDatasheet
T - TWMiniature Integral Toggle SwitchesMS18151Datasheet
8780-8792High Capacity Flush Mount Toggle SwitchesAN3230Datasheet
***Toggle Switch Nominal Ratings and Circuit DiagramsDatasheet
Pushbutton Switches
D200Heavy Duty Momentary Snap Action Pushbutton SwitchesDatasheet
H2200Double Pole Momentary Snap Action Pushbutton SwitchesDatasheet
J300Alternate Action Moisture Proof Pushbutton SwitchesDatasheet
C20050Momentary Snap Action Pushbutton SwitchesMS16712Datasheet
J4004Alternate Action Pushbutton SwitchesDatasheet
J100Alternate Action High Current Pushbutton SwitchesDatasheet
W300Moisture Proof Pushbutton SwitchesDatasheet
W9000Swivel Action Pushbutton SwitchesDatasheet
W9600Wide Button Moisture Proof Pushbutton SwitchesDatasheet
C100-W100-WC150Uniform Panel Appearance Pushbutton SwitchesDatasheet
B9001-B9022Sub-Miniature Pushbutton SwitchesM8805/96Datasheet
B7070Sub-Miniature Pushbutton SwitchesM8805/95Datasheet
A20000,J20000Momentary & Alt. Action Snap Action Illuminated Pushbutton SwitchesM22885/18Datasheet
8895-8899Hand Controls with Pushbuttons (Grips)NAF1173, NAF1174Datasheet
8870-8809Special Designed Pushbutton SwitchesM8805/55Datasheet
Rocker Switches
8551-8553Econoswitch Sealed Rocker Switches, with Removable ButtonDatasheet
8554-8556Econoswitch Sealed Rocker SwitchesDatasheet
8540-8542Environmentally Sealed Rocker SwitchesDatasheet
8543-8545Environmentally Sealed Rocker Switches, with Removable ButtonDatasheet
8546-8548Environmentally Sealed Rocker SwitchesDatasheet
***Rocker Switches Circuit ArrangementsDatasheet
MIL-spec # cross-referencesIlluminater Lighted Rocker SwitchesDatasheet
Precision Snap Action Switches
D,E,G,K,SBasic Switches, Precision Snap Action SwitchesMS25085, MS25342, MS25343, MS25244, MS25348, MS25349, MS25353, MS25356, MS25357Datasheet
A2-5,A5-18Basic Switches, Precision Snap Action, Roller and Leaf ActuatorDatasheet
Sealed Limit Switches
H11Environmentally Sealed Limit SwitchesMS21321, MS24331, MS27240Datasheet
HHHermetically Sealed Limit SwitchesDatasheet

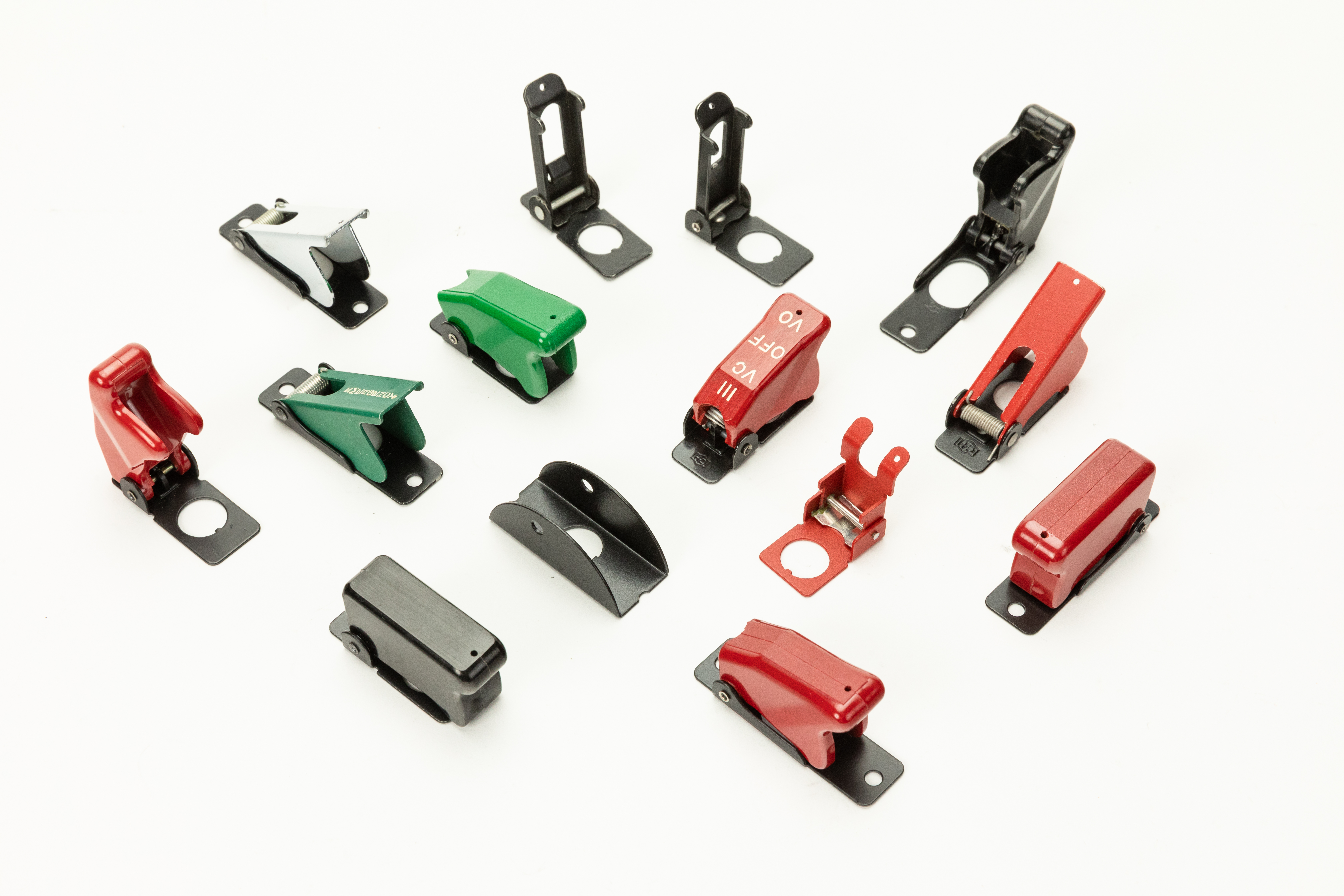

Switch Guards and Shields
8492K-8499LSwitch Guards, Mil-G-7703MS24417, MS25214, MS25221, MS25223, MS25224, MS25225, MS25452, MS27752, NAF47851-1Datasheet
73Pushbutton ShieldsDatasheet
***Switch Guard Application TableDatasheet
Accessories and Mounting HardwareDatasheet
***Protective SealsDatasheet
***Adapter Nut and Attachable TipsDatasheet
***Mounting and Terminal HardwareDatasheet
Rating, Cross Reference and Engineering DataDatasheet
Glossary of TermsDatasheet
